System Dimension : 2400(w) x 1680(d) x 1762(h)mm
Applicable L / F Size : Max. 100 x 300mm
Flow Direction : From Left to Right
Process

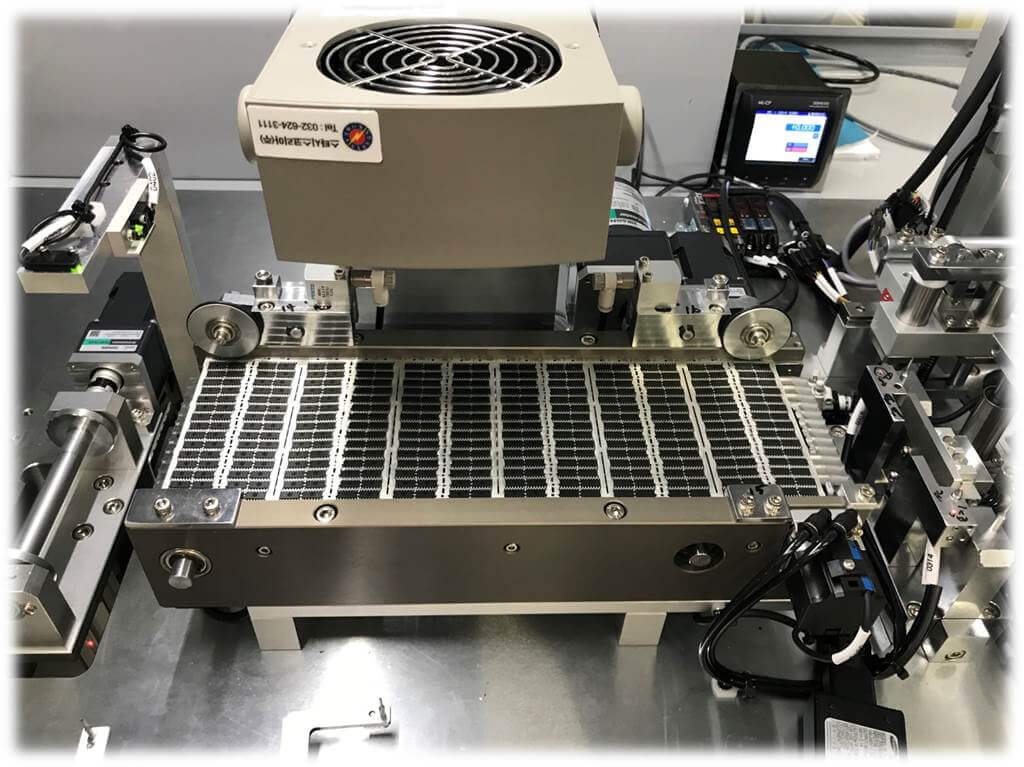

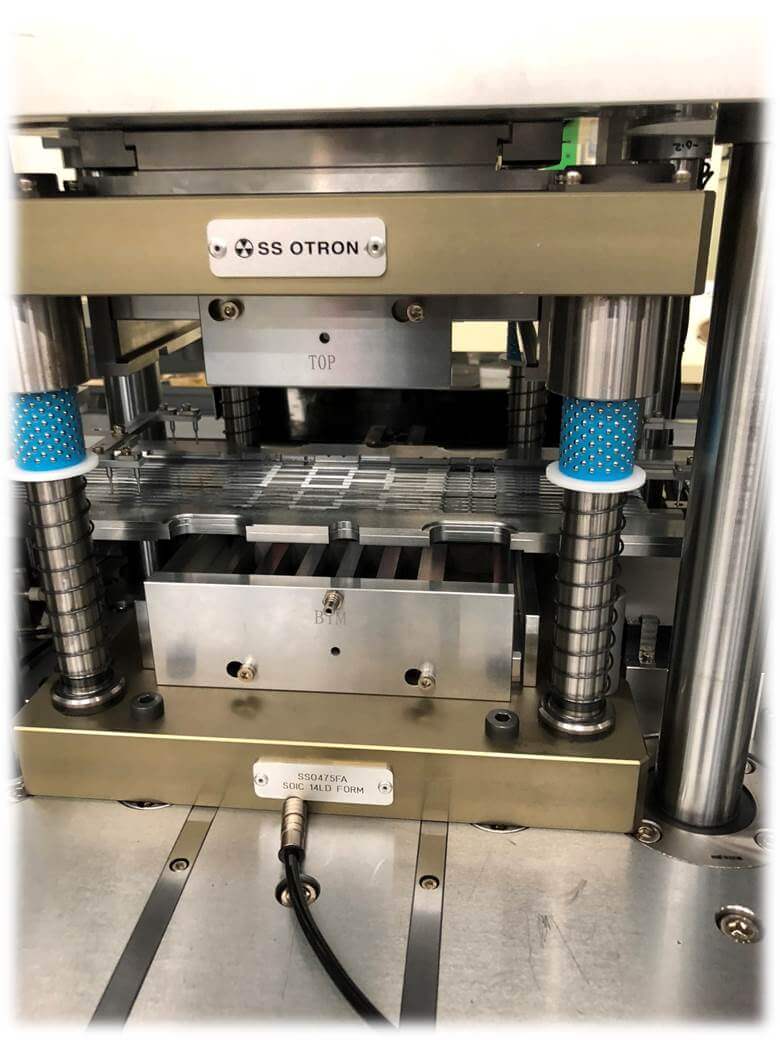

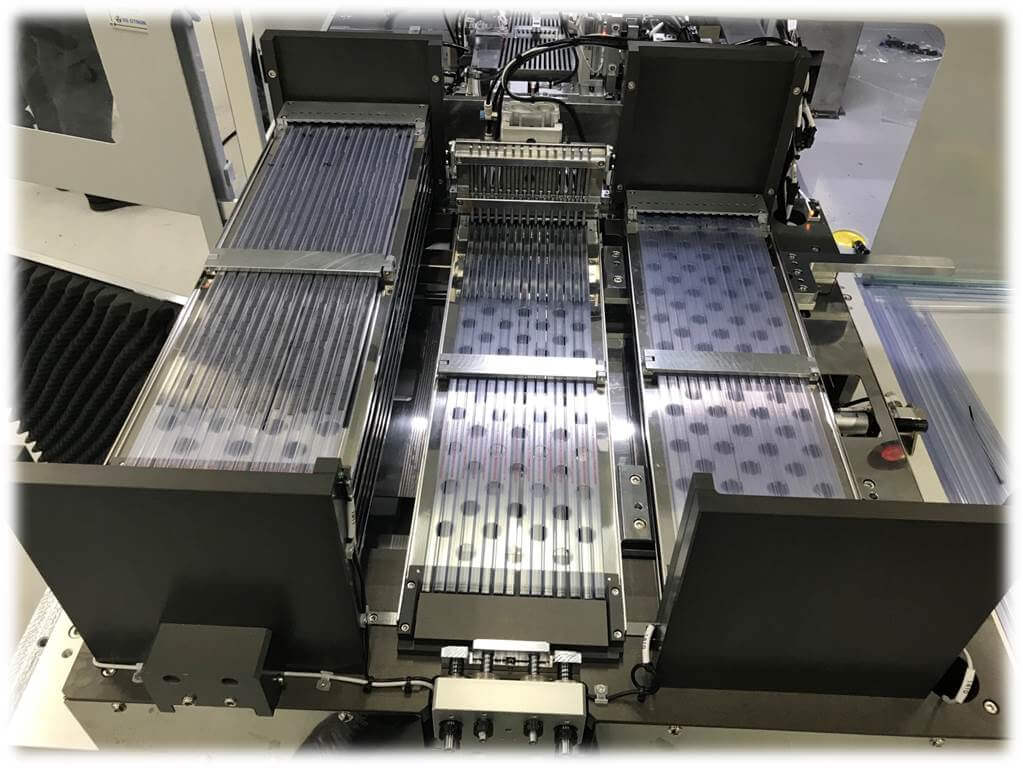

- Stack MGZ -> De Gate -> Pre Form -> Final Form -> Singulation -> Tube Off Loading
Control : PLC + Touch Screen
Utility
- Power : 3 Phase 220V 50~60Hz
- Air Supply : 5~6kgf / cm2
Others : SECS / GEM applicable
