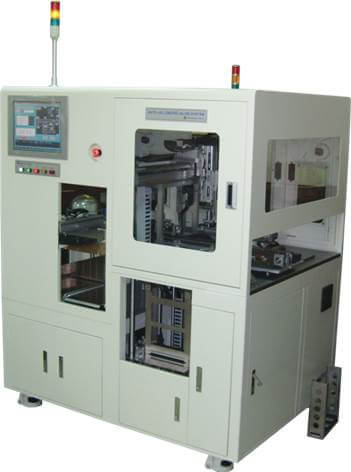

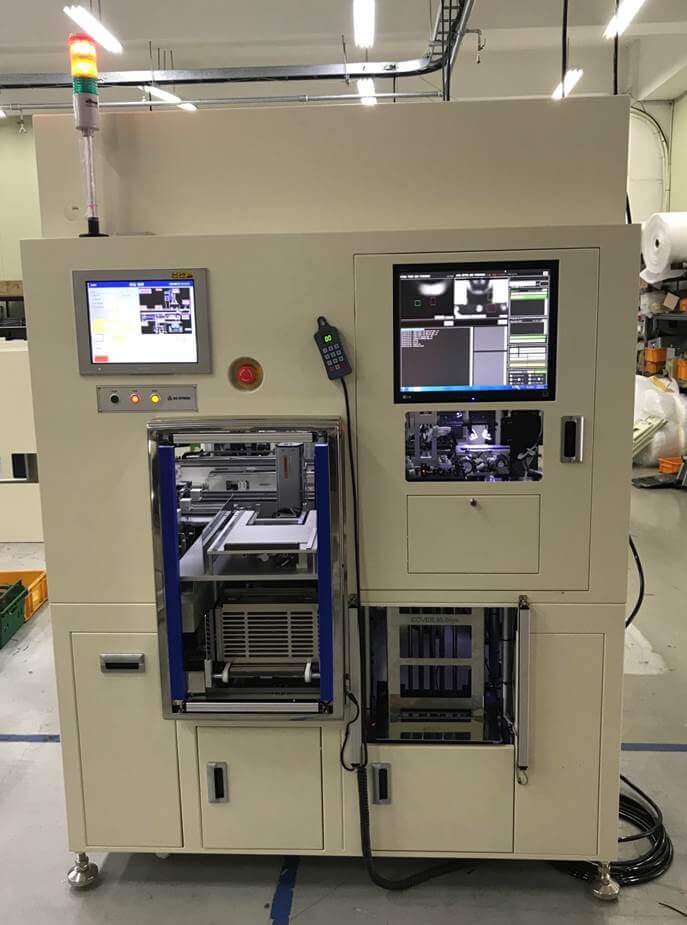

Machine Size : 1420(w) x 1970(d) x 1920(h)mm
S P H : 400 strips
Applicable PCB : CA62/ CA74 / CA95 PKG
JIG Magazine Stacking Quntity (Front + Rear)
- 62mm : 12ea / 74mm : 10ea / 95mm : 8ea
Progression
- PCB input -> PCB Align -> PCB Pick up ->JIG Loading -> JIG Align -> PCB Mounting -> JIG Feeding -> JIG Cover Loading -> JIG Assy Output
Control : PLC + Touch Screen
Utility
- Power : 3 Phase 220V 50~60Hz / Air Supply : 5~6kgf / cm2
Others
- In order to adjust the align of PCB and JIG Cover, install Mis-pilot Pin, Pick-up Movement.
- In order to protect from the unit drop, Gripper going abreast.
- In order to confirm Mis-Loading of JIG Cover, install FU-12 ( Detect the area, Fiber Sensor)
- SECS / GEM applicable
