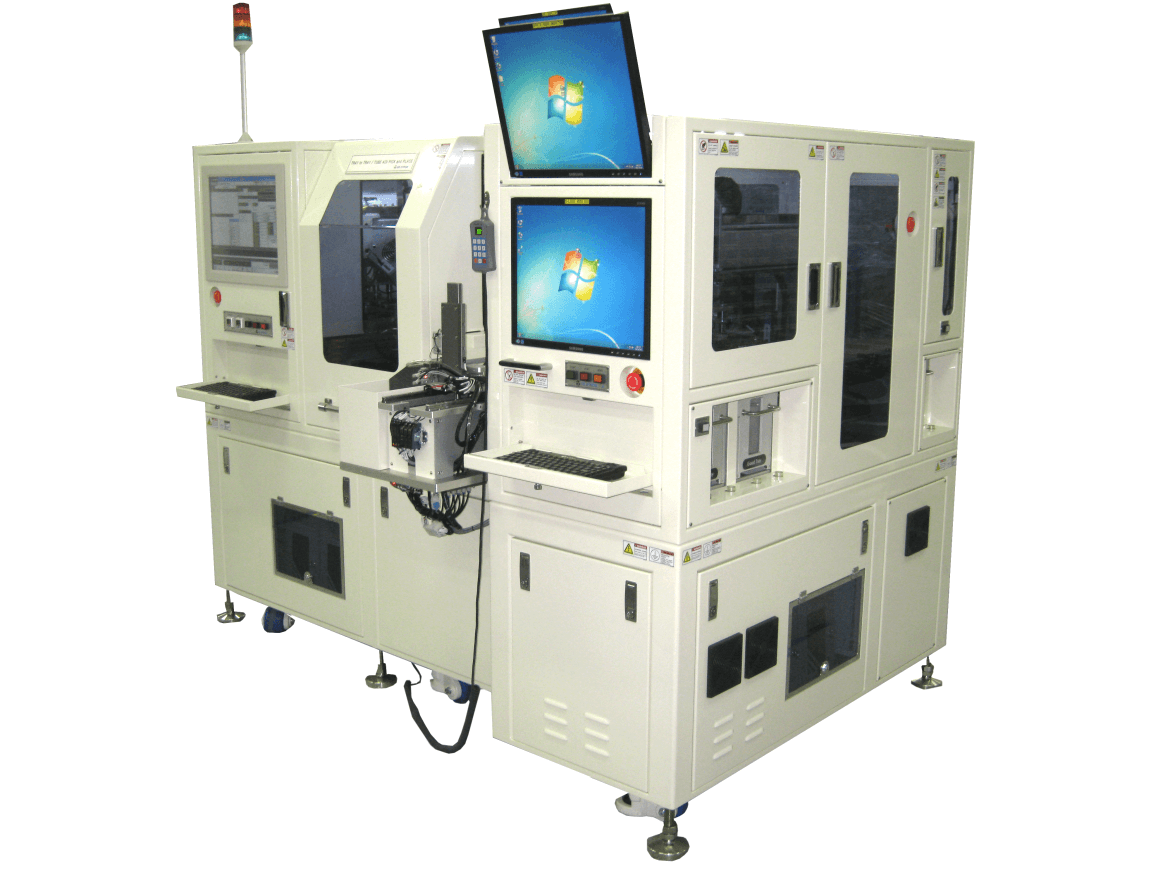

Machine Size : 2240(w) x 1370(d) x 1640(h)mm
Productivity : 9K without AOI / 6K with AOI
Control
- PCB Base
- Operation Monitor : 19'' LCD Touch 1set
- Vision Monitor : 19'' LCD 1set (Vision PC 2set)
Utility
- 220V ; 3Phase ; 50~60 Hz ; Air 5~6kgf / cm2

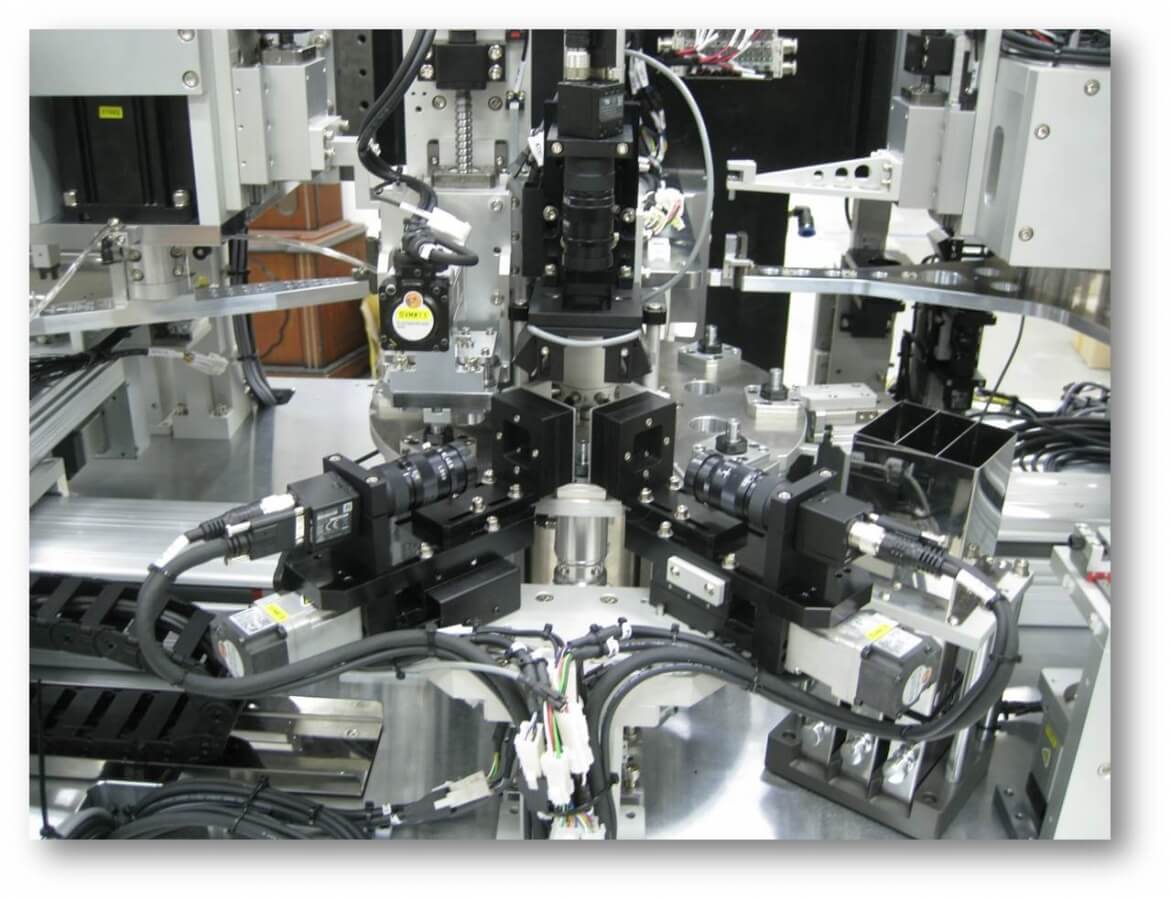

Main Component
- Full Tray Stacker -> 1set
- Tray Transfer -> 1set
- Rotary Picker 1 -> 2 picker
- Aligner
- Rotary Picker 2 -> 4 picker
- Tray Transfer -> 2 set
- Good Tray Stacker
- Tube Unloader
- Empty Tray Stacker -> 1 set
- Tray Picker -> 2 set
- Turn Table
- Vision -> 5 ea
- Tray Picker -> 2 set
- Empty Tray Stacker
- Verification Tray Stacker
- Canister -> 3 ea
